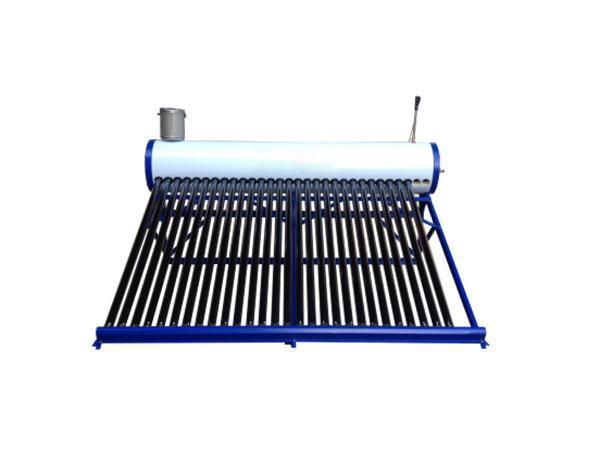

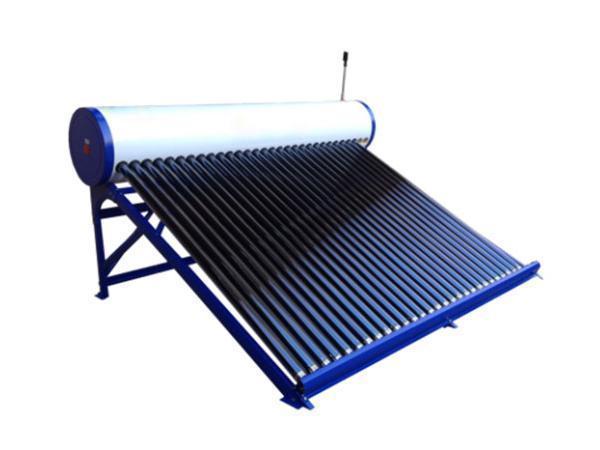

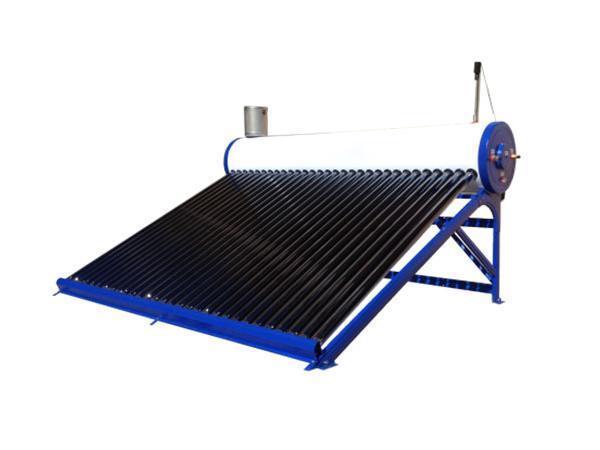

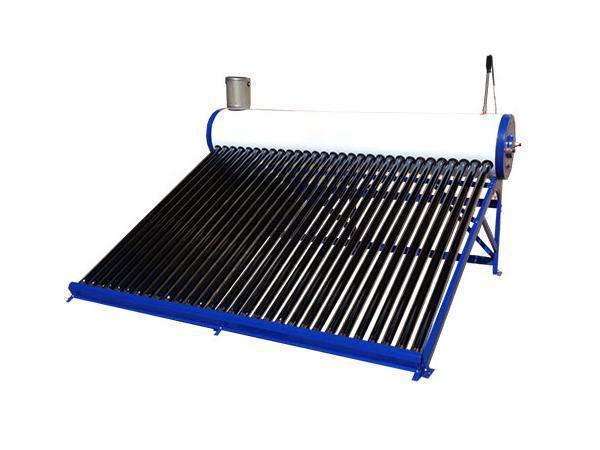

Non pressurized solar water heater coil inside

Vacuum Tube Size (mm) Φ47*1500 / Φ58*1800
Tube (pcs) 18 / 20 / 22 / 24 / 30
Material Borosilicate 3.3 glass, magnetron spluttering selective coating
Coating AL/AL-ALN(H)/AL-ALN(L)/ALN or Cu/SS-ALN(H)/SS-ALN(L)/ALN
Water Tank Capacity 100L ~ 300L for hot water storage tank
Inner tank Food-grade stainless steel SUS304-2B / SUS316
Exchanger Copper pipe coil fixed in tank ( Stainless coil is available )
Insulation High-density polyurethane foam with 70~80 hours heat preservation
Tank shell Painted color steel

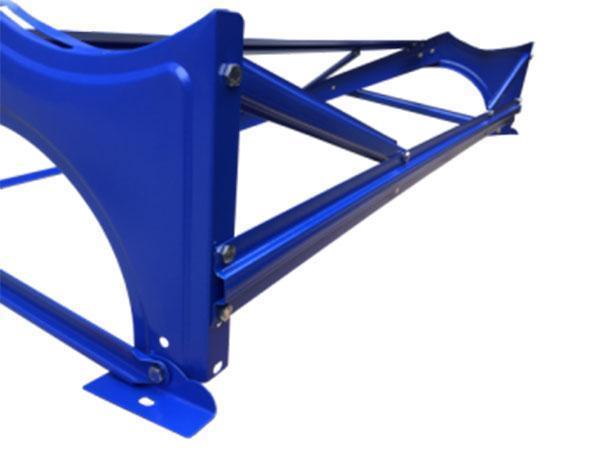

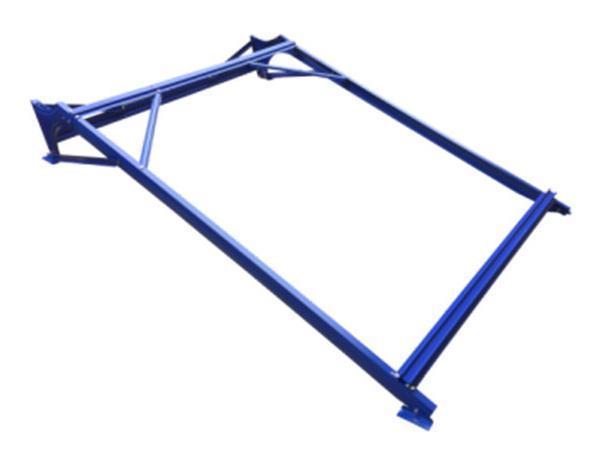

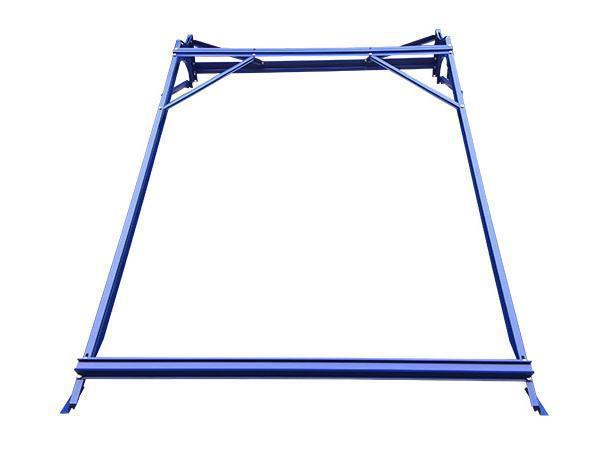

Bracket Shaped galvanized steel structure up to 140 km/hour wind resistance
Accessories Anti-aging silicon seals, Dustproof seals, Air-vent cap, Stainless screws
Auxiliary Equipments Anti-aging silicon seals, Dustproof seals, Air-vent cap, Stainless screws
Tilt Angle 25 ~ 50°
Water Output 45 - 95°C
Hail Resistance Φ25mm
Working Pressure 6.0 bar
Model Number Solar Vacuum Tube Tank System Container Loading Qty /sets
Size /mm Qty /pcs Liter Liter 20GP 40GP 40HQ
HM-460-1800/58-18 Φ58mm*1800 18 150 198 43 86 105
HM-460-1800/58-20 20 170 223 40 80 97
HM-460-1800/58-24 24 200 263 35 70 85
HM-460-1800/58-30 30 250 329 28 56 68
HM-460-1800/58-36 36 300 395 23 47 57
