This tube is exclusively used on Himin's patented portable solar oven, also known as a solar carriable. After 2 years of research, Himin developed this brand new solar products that integrates solar powered baking, boiling and cooking functions together, thus successfully moving away from the use of electricity to the use of solar CSP technology in commercial household use products.

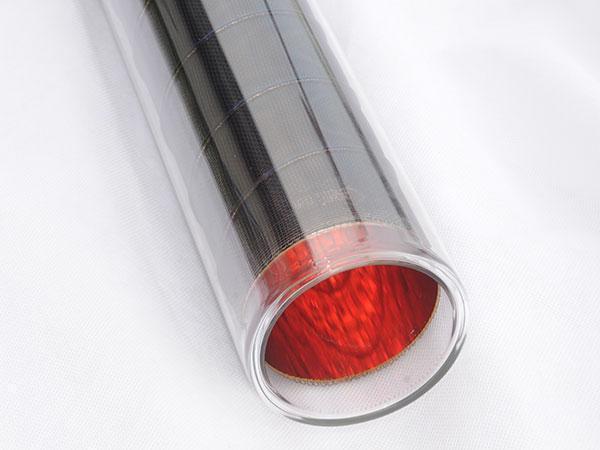

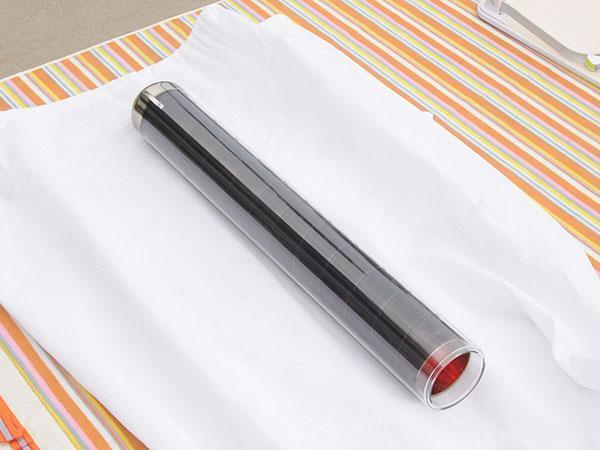

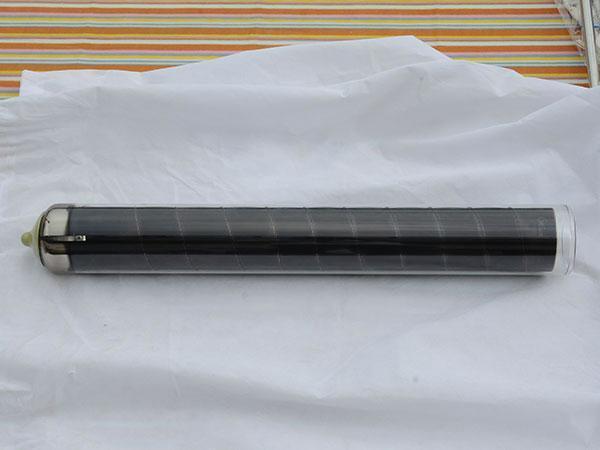

The BBQ tube has two types: a glass tube or a metal tube. When cooking, temperature inside the tubes reaches between 200-400°C.
|Tube Type||Glass Tube||Metal-Glass Tube|
|Outer tube diameter(mm)||70||90||90||120||120||120||160||160||120||120||120||102||102|
|Inner tube diameter(mm)||58||75||75||102||102||102||140||140||102||102||102||89||89|
|Average heat loss (w/(m2. ℃)||≤0.75||≤0.71||≤0.69||≤0.68||≤0.67|
|Max temperature (℃)||358||425||445||436||468|
