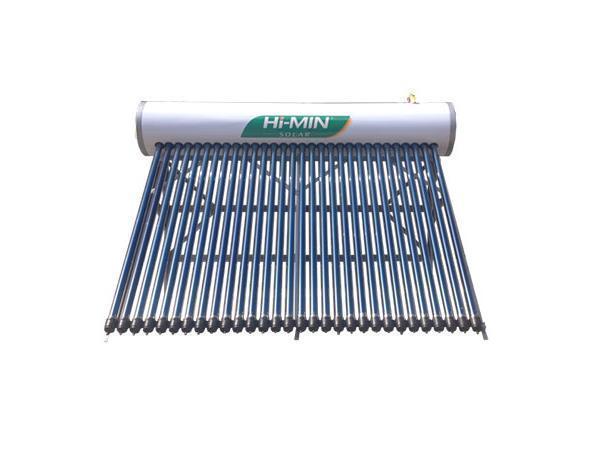

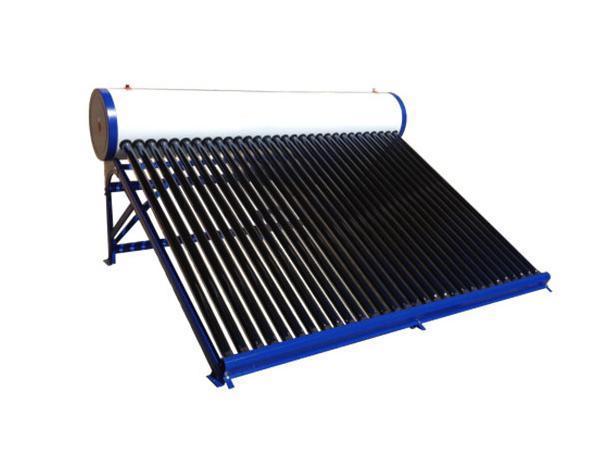

Integrated Pressurized Solar Water Heater
| MODEL | Integrated pressurized solar water heater with enamelled tank | ||||||
| Inner tank material | 2mm enamelled pressed steel coated 0.5mm porcelain enamel | ||||||
| Outer tank material | colored steel sheet,thickness:0.4mm/stainless steel sheet,thickness:0.4mm/galvanized steel sheet,thickness:0.4mm | ||||||
| Outer tank diameter | 460mm/480mm | ||||||
| Insulation layer | 55mm,heat preservation 100 hours | ||||||

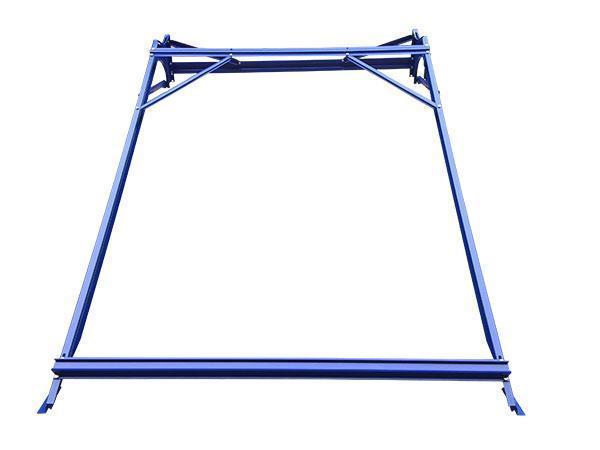

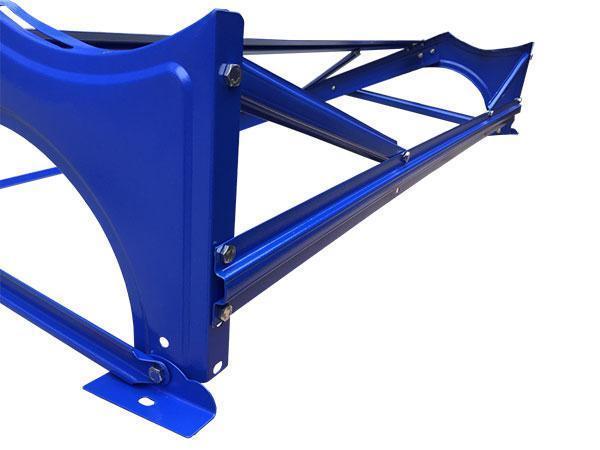

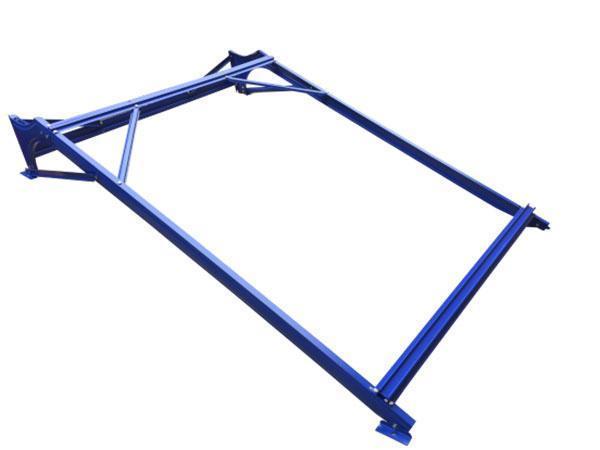

| Frame and frame angle | aluminum alloy,thickness: 2mm 0-45°/stainless steel,thickness:1.2mm 27°,30°,38°,45°/galvanized steel,thickness:1.2mm 27°,30°,38°,45° | ||||||
| Heat pipe | ø58mm*1800mm,three high vacuum tube | ||||||
| Lowest working temperature | -10°C/-40°C | ||||||
| Heat pipe condenser size | 9mm | ||||||
| Working pressure | 7bar/0.7MPa | ||||||
| Testing pressure | 12bar/1.2MPa | ||||||
| Needed accessories | electrical heater, T/P valve, one way safety valve, Magnesium bar, controller, working stain, plastic cap | ||||||
| Hail resistance | 20mm | ||||||
| Model | Absorbing area(m2) | Heat pipe | Tank Capacity | Qty.(Sets) | |||
| Diameter | Length | Number | 20" | 40HQ | |||
| 2.07 | ø58mm | 1800mm | 15 | 136L | 41 | 91 | |
| 2.21 | ø58mm | 1800mm | 16 | 145L | 44 | 98 | |
| 2.49 | ø58mm | 1800mm | 18 | 160L | 40 | 90 | |
| 2.76 | ø58mm | 1800mm | 20 | 175L | 35 | 73 | |
| 3.32 | ø58mm | 1800mm | 24 | 208L | 30 | 68 | |
| 4.15 | ø58mm | 1800mm | 30 | 256L | 25 | 55 | |
