Parabolic Trough Receiver

Brief Introduction

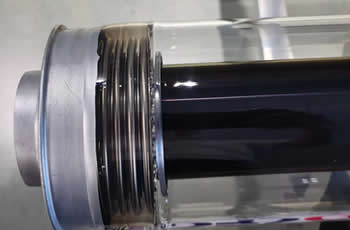

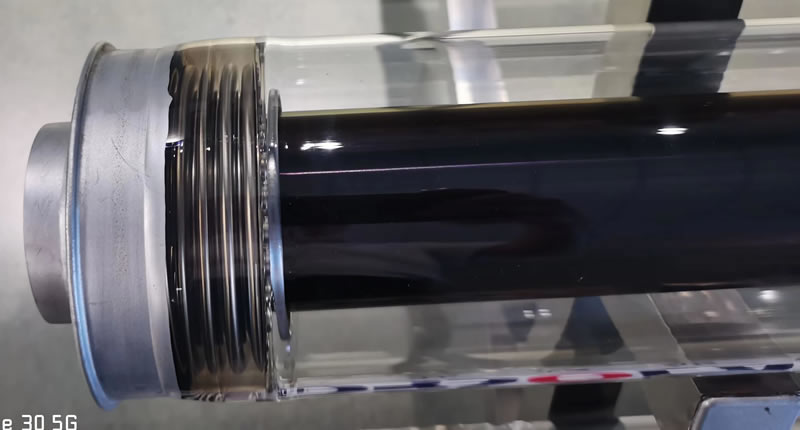

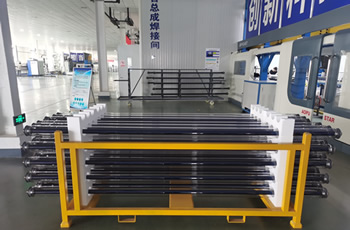

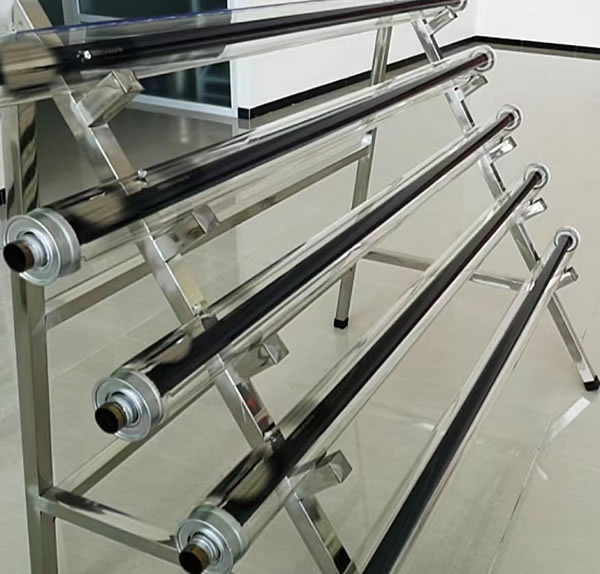

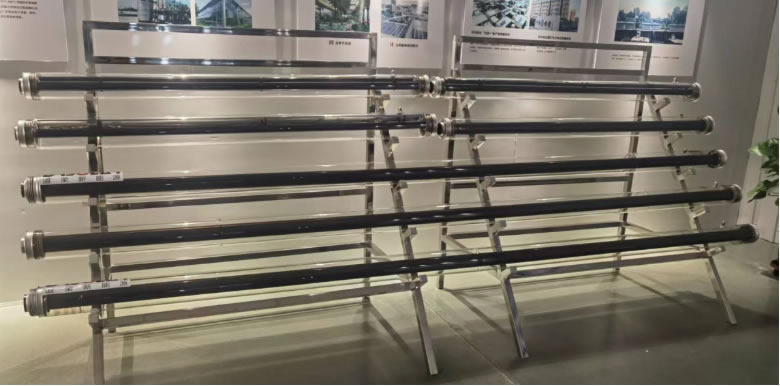

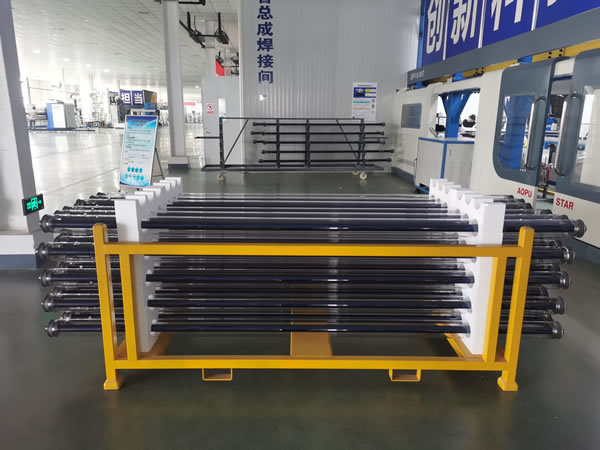

Parabolic trough receiver is also known as Heat Collecting Element (HCE). As a key component of a parabolic trough solar collector, its thermal and optical performance as well as performance reliability determines the efficiency and economy of a parabolic trough power generation system.

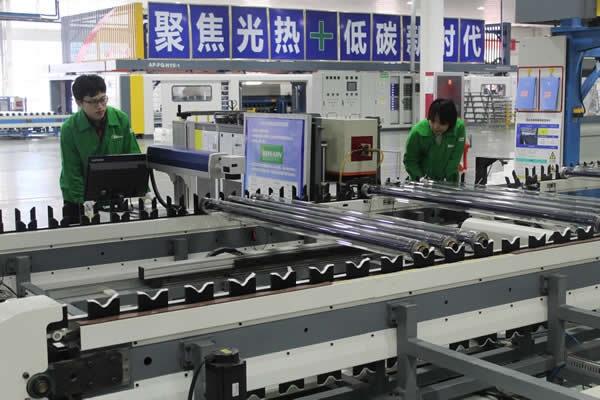

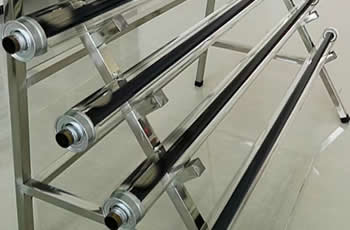

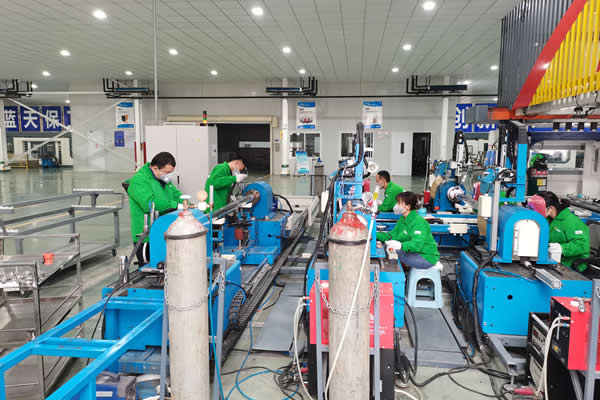

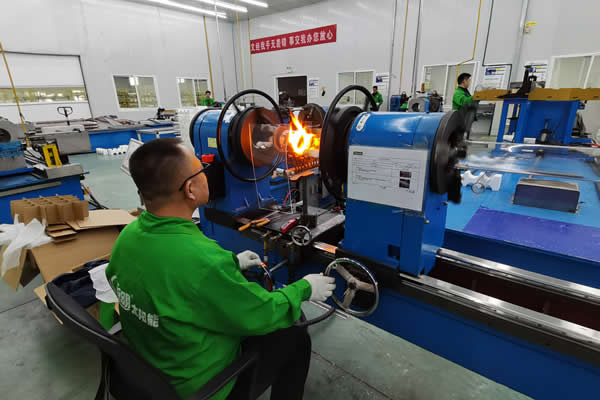

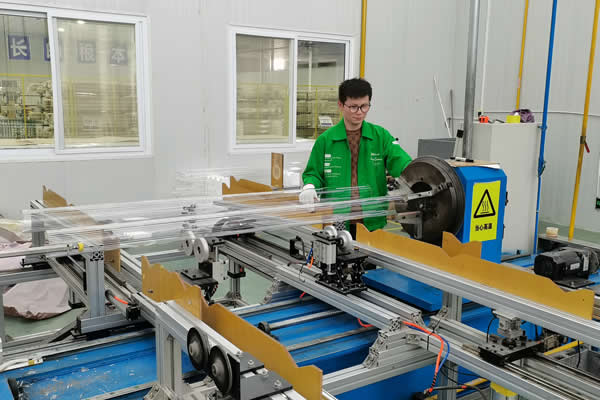

Himin has developed two generations of parabolic trough receiver, Himin-PTR2010 and Himin-PTR2012. Compared to previous products, Himin-PTR2012 is designed to promote the development of more productive and cost-competitive solar fields possible with its features of higher efficiency, more stability and longer service time.

Technical Specifications
Himin PTR2012 Technical Datasheet
Steel Tube Total Length 4060±2mm (at 20oC)
Outer Diameter 70±0.3 mm
Wall Thickness 3mm
Coating Selective absorbing coating on external surface
Reserved Length for Welding 10mm
Glass Tube Material Borosilicate Glass
Total Length 3935±5mm (at 20oC)
Outer Diameter 120±0.3 mm
Wall Thickness 3mm
Coating Anti-reflective coating on both-side surfaces
Functional Specifications Average Solar Transmittance ≥96.0% (AM 1.5)
Average Solar Absorptance ≥95.0% (AM 1.5)
Average Thermal Emittance ≤11% (400℃)
Max. Operating Temperature 400oC (oil)
Max. Operating Pressure 80 bar
Annulus Vacuum Degree < 1.0×10-3Pa
Total Weight 32kg
Service Life >20 years
Series Model Specifications Performance
Length Operating Temperature Outer Glass Tube Diameter/Wall Thickness Inner Steel Tube Diameter
/ Wall Thickness(Material)
Operating Pressure Solar Absorption Weight Solar Absorption Thermal Emittance Solar Transmittance Heat Loss Coefficient Optical Efficiency
PTR40 40-95-2000 2000mm 300℃ φ95/2, 2.3, 2.8 φ40/2 (SUS304) 4MPa ≥93.7% 7.5±1Kg ≥94%(AM1.5) ≤8%(80℃±5℃)
≤11%(300℃)
≥89%(5.0)
≥91%
≤70W/M(300℃) ≥83%
40-75-2000 2000mm 300℃ φ75/1.8 φ40/2 (SUS304) 4MPa ≥93.7% 7±1Kg ≥94%(AM1.5) ≤8%(80℃±5℃)
≤11%(300℃)
≥89%(5.0)
≥91%
≤70W/M(300℃) ≥83%
40-95-2400 2400mm 300℃ φ95/2, 2.3, 2.8 φ40/2 (SUS304) 4MPa ≥94.8% 9.1±1Kg ≥94%(AM1.5) ≤8%(80℃±5℃)
≤11%(300℃)
≥89%(5.0)
≥91%
≤70W/M(300℃) ≥83%
40-95-2860 2860mm 300℃ φ95/2, 2.3, 2.8 φ40/2 (SUS304) 4MPa ≥95.5% 10.5±1Kg ≥94%(AM1.5) ≤8%(80℃±5℃)
≤11%(300℃)
≥89%(5.0)
≥91%
≤70W/M(300℃) ≥83%
40-95-3000 3000mm 300℃ φ95/2, 2.3, 2.8 φ40/2 (SUS304) 4MPa ≥95.5% 10.7±1Kg ≥94%(AM1.5) ≤8%(80℃±5℃)
≤11%(300℃)
≥89%(5.0)
≥91%
≤70W/M(300℃) ≥83%
40-95-3165 3165mm 300℃ φ95/2, 2.3, 2.8 φ40/2 (SUS304) 4MPa ≥95.5% 11±1Kg ≥94%(AM1.5) ≤8%(80℃±5℃)
≤11%(300℃)
≥89%(5.0)
≥91%
≤70W/M(300℃) ≥83%
40-125-3420 3420mm 300℃ φ125/2.8 φ40/2 (SUS304) 4MPa ≥95.5% 11.5±1Kg ≥94%(AM1.5) ≤8%(80℃±5℃)
≤11%(300℃)
≥89%(5.0)
≥91%
≤70W/M(300℃) ≥83%
40-95-2227.5 2227.5mm 300℃ φ95/2, 2.3, 2.8 φ40/2 (SUS304) 4MPa ≥84.2% 10.5±1Kg ≥94%(AM1.5) ≤8%(80℃±5℃)
≤11%(300℃)
≥89%(5.0)
≥91%
≤70W/M(300℃) ≥83%
PTR42 42-84-2000 2000mm 300℃ φ84/2 φ42/2 (SUS304) 4MPa ≥84.2% 7.5±1Kg ≥94%(AM1.5) ≤8%(80℃±5℃)
≤11%(300℃)
≥89%(5.0)
≥91%
≤70W/M(300℃) ≥83%
42-102-2000 2000mm 300℃ φ102/2.8 φ42/2 (SUS304) 4MPa ≥93.7% 11±1Kg ≥94%(AM1.5) ≤8%(80℃±5℃)
≤11%(300℃)
≥89%(5.0)
≥91%
≤70W/M(300℃) ≥83%
PTR50 50-102-2000 2000mm 300℃ φ102/2.8 φ50/2.5 (sus304) 4MPa ≥93.7% 13.5±1Kg ≥94%(AM1.5) ≤8%(80℃±5℃)
≤11%(300℃)
≥89%(5.0)
≥91%
≤70W/M(300℃) ≥83%
50-102-3000 3000mm 300℃ φ102/2.8 φ50/2.5 (SUS304) 4MPa ≥95.5% 20.2±2Kg ≥94%(AM1.5) ≤8%(80℃±5℃)
≤11%(300℃)
≥89%(5.0)
≥91%
≤70W/M(300℃) ≥83%
PTR70 70-125-2000 2000mm 400℃ φ125/2.8, 3 φ70/2.5, 3 (SS321/316L) 4MPa ≥93.7% 15±1Kg ≥95%(AM1.5) ≤7%(80℃±5℃)
≤11%(400℃)
≥95% ≤240W/M(400℃) ≥90%
70-125-4060 4060mm 400℃ φ125/2.8, 3 φ70/2.5, 3 (SS321/316L) 4MPa ≥96% 28.5±1Kg ≥95%(AM1.5) ≤7%(80℃±5℃)
≤11%(400℃)
≥95% ≤240W/M(400℃) ≥90%
PTR90 90-145-4060 4060mm 400℃ φ145/2.8, 3 φ88.9/2.5, 3(SS321/316L) 4MPa ≥96% 38±1Kg ≥95%(AM1.5) ≤7%(80℃±5℃)
≤11%(400℃)
≥95% ≤240W/M(400℃) ≥90%
Customization Options Special sizes are customizable according to your requirements.
